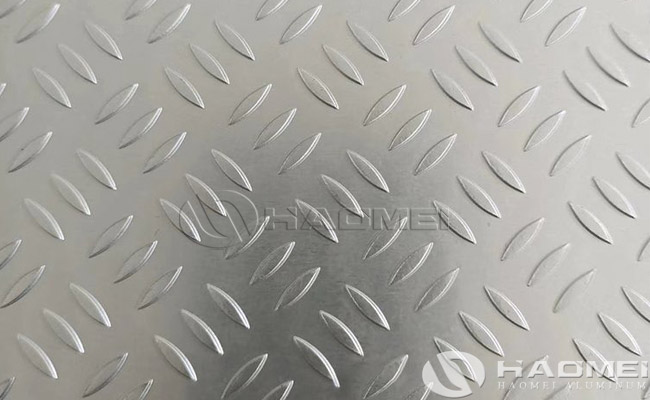

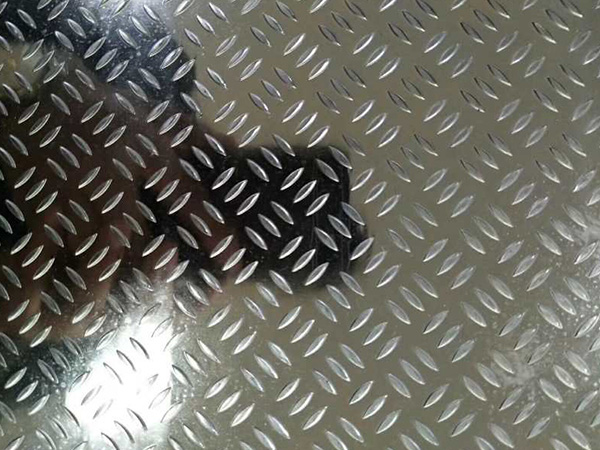

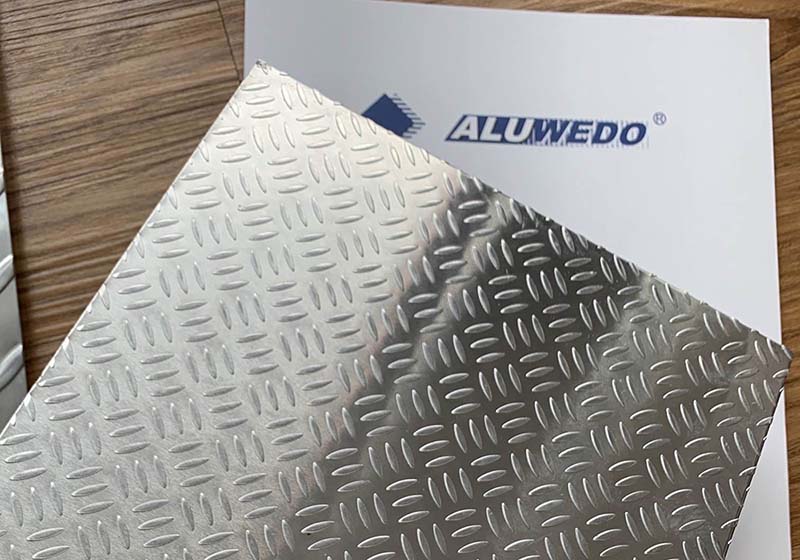

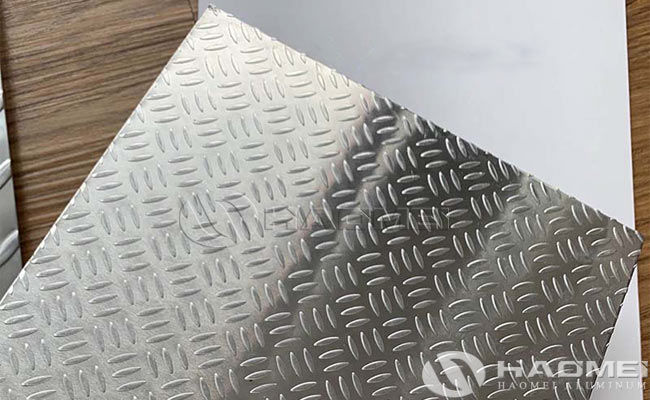

The triple grip aluminium sheet is another call form of 3 bars aluminum sheet, it have 3 willow leaf pattern bars on the surface of the aluminum plate is arranged in relative parallel according to concave and convex patterns.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |

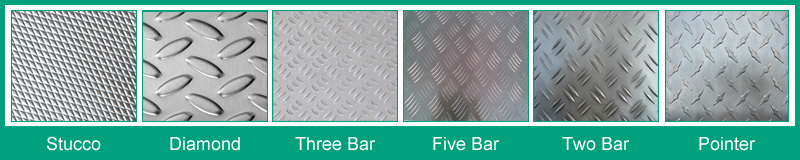

Bar Difference | Triple Grip, 3 bars, three bars | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |

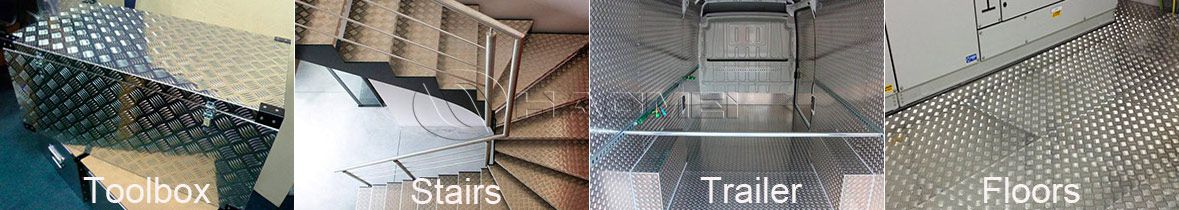

1, Ramps, Toolboxes, Decorative flooring and walls, vehicle running bars and kick plates, Trailers, Dock surfaces, Stairways.
2, For vehicle applications like steps and risers, battery and fuel tank covers, bumpers and kick plates.
3, For building applications like door kick plates, hatch covers, working platforms, steps and ramps.
Durable and weather & corrosive resistant
Slip resistant
Bright reflective surface and unique decorative appearance
