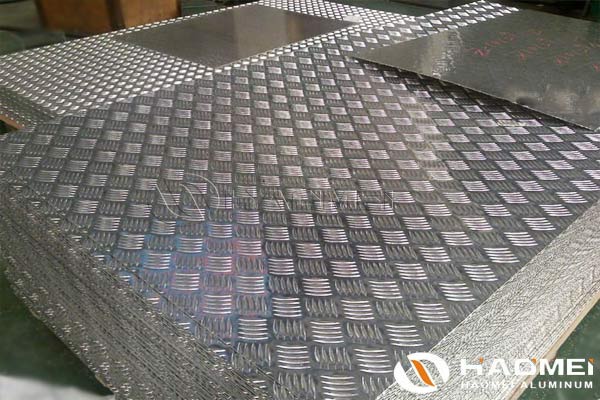

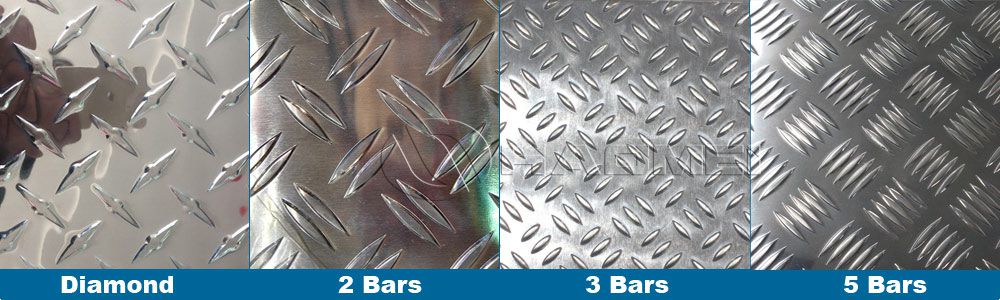

The durbar checker plate is manufactured by external mechanical processing on aluminum plate. It is rolled on the basis of the aluminum plate, so that the surface of the aluminum plate forms an uneven burbar pattern. The common durbar tread plate has one rib aluminum plate, two rib aluminum plate, and three ribs aluminum plate, five-rib aluminum plate and orange peel embossed aluminum plate, etc. It has a wide range of applications and excellent performance.
1) Alloy: 1050, 1060, 1100, 3003, 3004, 3005, 3105, 5005, 5052 etc.
2) Temper: O / H12 / H14 / H16 / H18 / H32 / H34 / H36 / H38 / H111 / H112 / H116 / H321 / T6 / T651 etc.
3) Thickness: 1.0-8.0mm.
4) Width: Max 2100mm, the regular size is 1000mm, 1200mm, 1219mm, 1220mm 1250mm, etc.
5) Length: Max 6000mm, the regular size is 2000mm, 2400mm, 2438mm, 2440mm, 2500mm or coil.
6) Surface: Embossed (Hammered, Stucco, diamond, compass, orange peel etc.)
7) Standard: ASTM, GB/T3190-2008, ENAW, JIS, etc..
8) Quality: High precision and excellent flatness, dimension and flatness can meet ASTM & EN standard.
9) Protective Film: Protective pvc film can be added.
Skid-resistance.
Resist rust.
Resist corrosion and long life.
Lighter than other material.
Remain high value after being replaced.
Decorative function.
★ Timely response: Timely response to your inquiry within 24 hours and provide solution.
★ Competitive Price: Make the aluminum checker plate products competitive in your market.
★ Free sample: Free sample are offered, trial order are accepted for quality evaluation.
★ Strict quality control: We set Quality Management System, from the raw material to finished products, produce high quality products according to chemical & physical specifications strictly to satisfy customers' needs.
