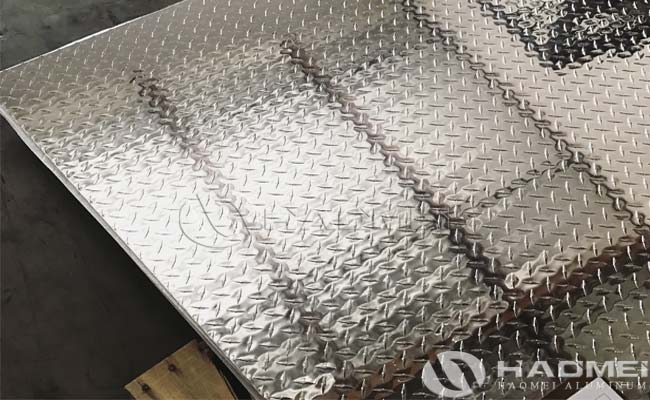

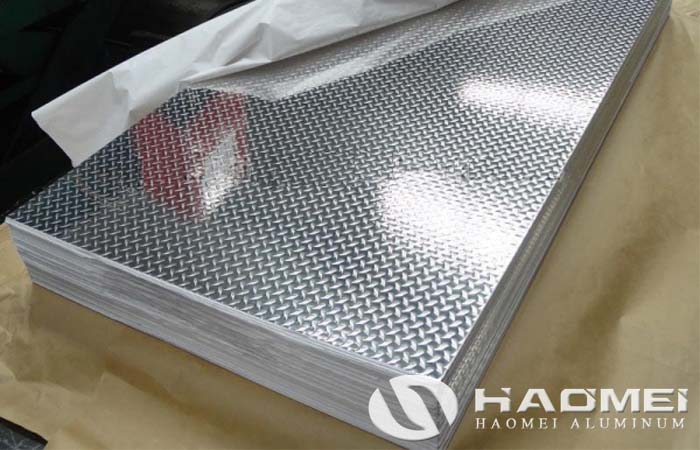

For the diamond sheet price has big differences in the market. And this is because the diamond plate price is affected by the specific alloy grade, thickness and width, as well as fluctuating aluminum ingot prices. So here, our Haomei Aluminum offer the cheap diamond plate sheets and real-time online quotation service. Now, if you are looking for aluminum diamond plate cost, just contact us to get best factory direct price of diamond plate!
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |
Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
Skid-resistance.
Resist rust.
Resist corrosion and long life.
Lighter than other material.
Remain high value after being replaced.
Decorative function.
Floor Covering for hygiene and slip resistance.
Wall and column protection to prevent impact damage where hand trucks, trolleys, sack carts are operated.
Door protection as kick plates or as a full door cladding.
Commercial vehicle and vans.
Access ramp covering for wheelchairs.
Livestock trailer tailgate ramps and flooring.
Land rover and other off road vehicle body protection, bonnets, wings, sills, corners, floors, bumpers, mud flaps, door plates, side plates, load area plates.
Truck Bed Tool Boxes.
Stair treads, step ladders, walkways.
Shop front facial for vandal protection.
