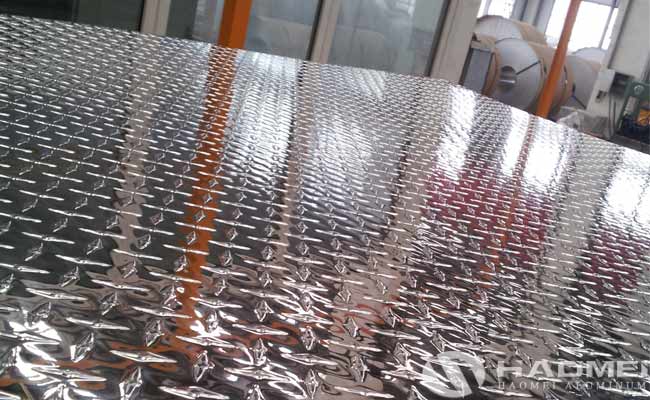

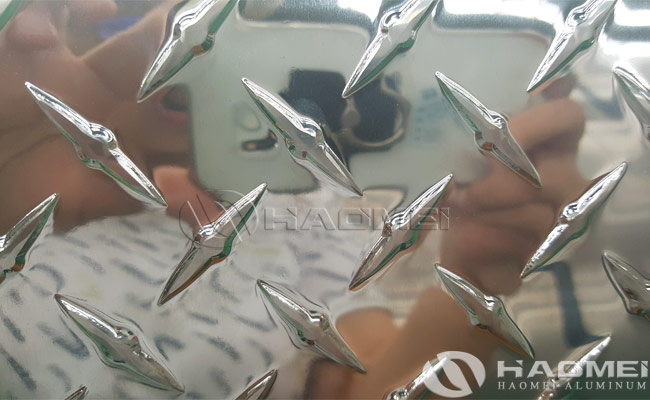

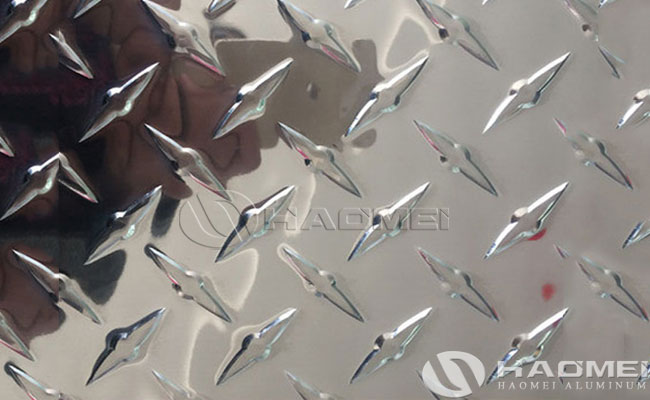

Aluminum diamond pattern metal sheets is available in 6061-T6 and 3003-H14 types. The 6061-T6 alloy has a dull mill finish and is harder and more durable, and the 3003-H14 has shiny bright finish, and is softer and more form-able. Diamond pattern aluminum sheet are intended for use in decorative applications, such as partitions and surface protectors, and should not be confused with traction floor plates.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |
Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
1. Accurate size, good anti-slip effect,wide range of applications
2. Strong plasticity, easy forming and excellent processing performance.
3. Diamond aluminum plate can form a dense and strong oxide film on aluminum surface to prevent the intrusion of oxygen, so it has good corrosion resistance.
4. Good elongation and tensile strength, fully able to meet the normal processing requirements (stamping, stretching), high formability.
5. The surface quality of aluminum diamond plate is good, no oil spots, waves, scratches, roller marks, neat trimming, no burrs.
1, Loading Ramps
2, Stair Tread
3, Flooring
4, Dock Plate
5, Decorative purposes
6, Fire Trucks
7, Ambulances
8, Recreational Vehicles
