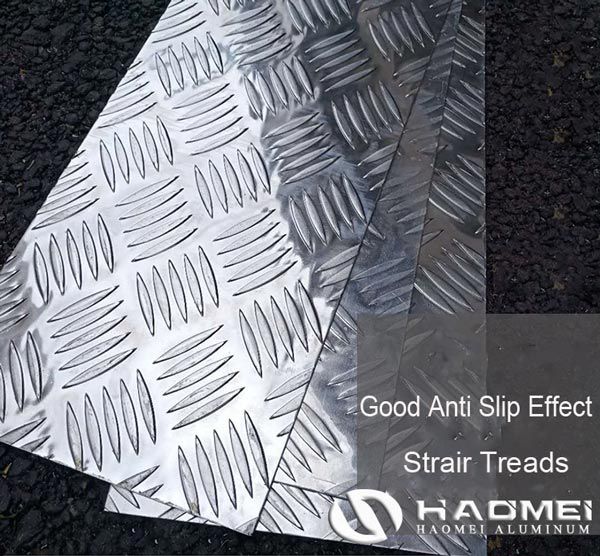

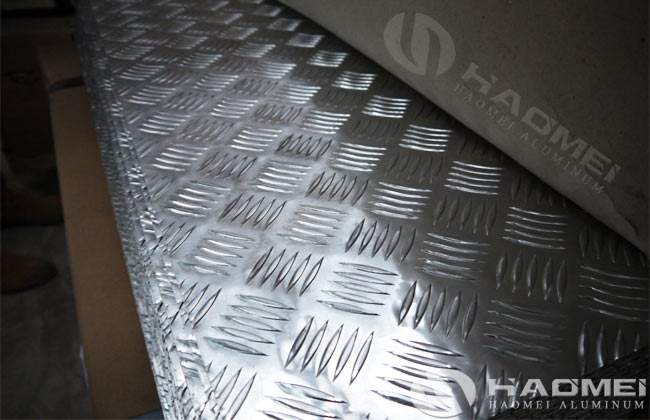

Chequer Plate Stair Treads

Chequer Plate Stair Treads: Series1050, 1060, 1100, 3003, 5052, 5083, 6061; TemperH12, H14, H16, H18, H22, H24, H111, T6; Thickness0.8-10.0 mm; Width20-1950 mm; ApplicationStair treads; send email Inquiry

DESCRIPTION

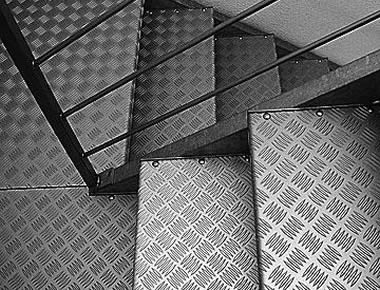

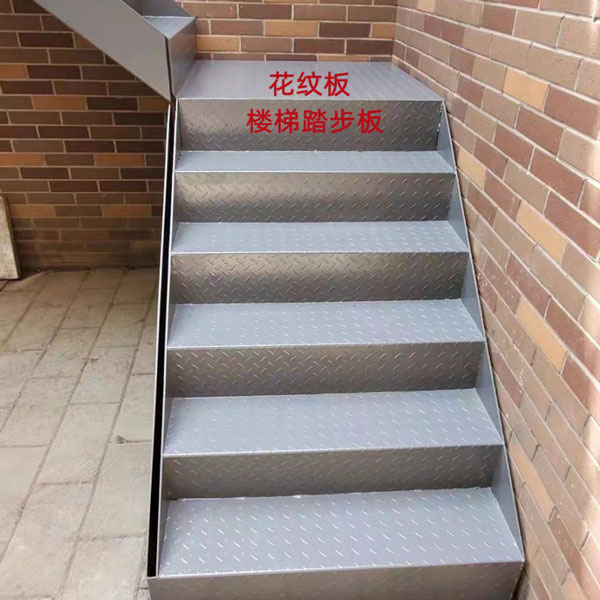

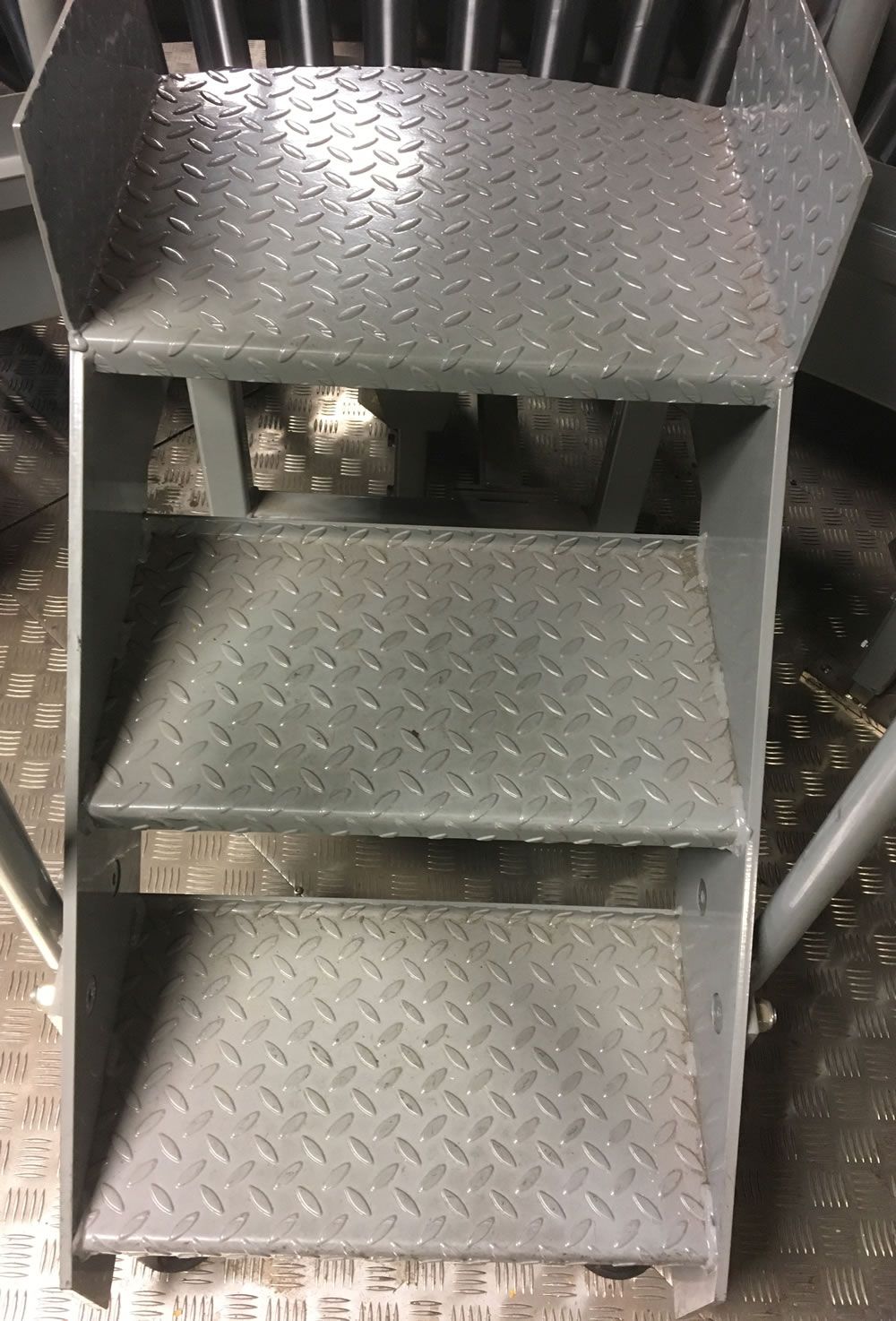

Chequer plate stair treads provide a safe, anti-slip surface for pedestrian traffic on commercial stairs. Chequer Plate treads are commonly used to build stairs that need to be slip resistant and do not require a concrete fill.

The specification of Chequer Plate Stair Treads:

Alloy	1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082
Temper	H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F
Surface	Bright Finish, Mill Finish

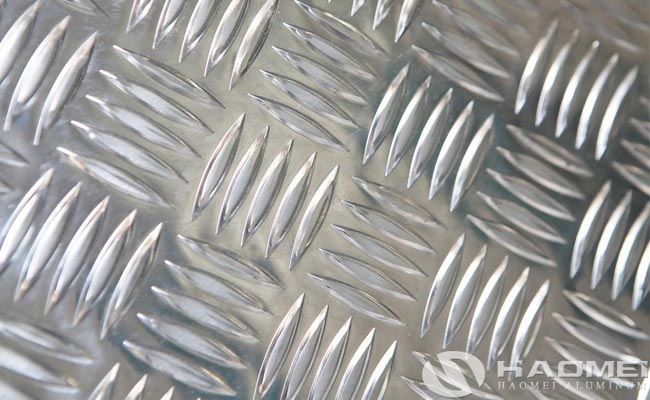

Bar Difference	Five Bar, Stucco, Compass, Diamond.
Available Dimension
	Mill Finish Surface	Bright Finish Surface
Thickness	1.0---6.5mm	1.2---6.5mm
Pattern Height	Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm
	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm
	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm
Width	Maximum 1500mm	Maximum 1650mm
Length	Maximum 6000mm	Maximum 6000mm
Paper Interleaves	On Request For Selected	On Request For Selected
Normal Size	1200x2400mm, 1219x2438mm, 1219x3048mm	1200x2400mm, 1219x2438mm, 1219x3048mm

The advantages of Chequer Plate Treads:

High rust-resistance,

High Hardness,

Good anti-oxidation,

Wear-resisting,

Easy to coating,

Heat-resisting,

Low Density.

The application of Chequer Plate Stairs:
