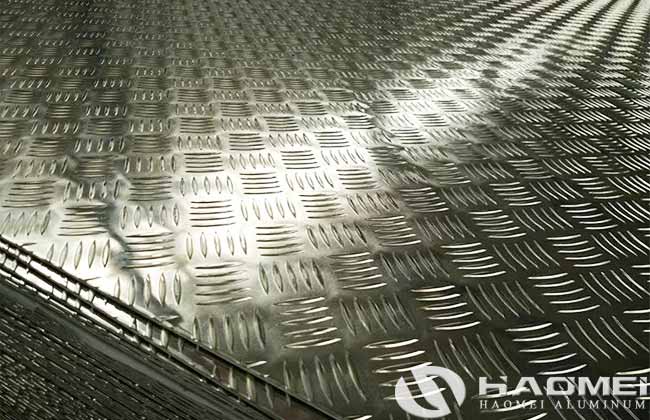

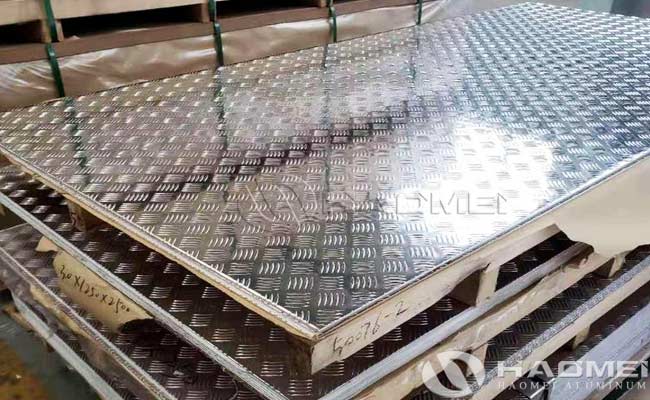

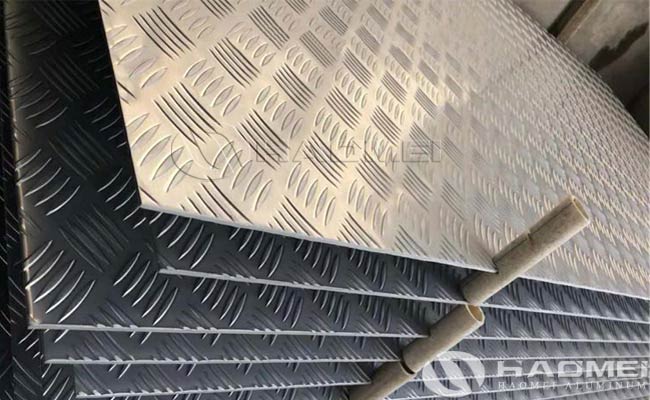

Haomei aluminium tread plate bunnings is available in three sizes, which are 4X8', 4X10' and 5X10'. We carry three thicknesses of 1/16'' (0.0625), 1/8'' (0.125) and 3/16'' (0.1875). It combines robustness and lightness, and has stripes that prevent slipping. The aluminum tread plate bunnings can be used for flooring, walls, trailers, etc.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |
Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
Easy to work with
Safe tread non slip surface
Decorative five bar pattern
Convenient pre-cut sizes and lightweight
The tread plate bunnings can be used to make tool boxes, kick plates, trailer flooring, wheel guards, feature panelling, boot liners, shelves and much more.
