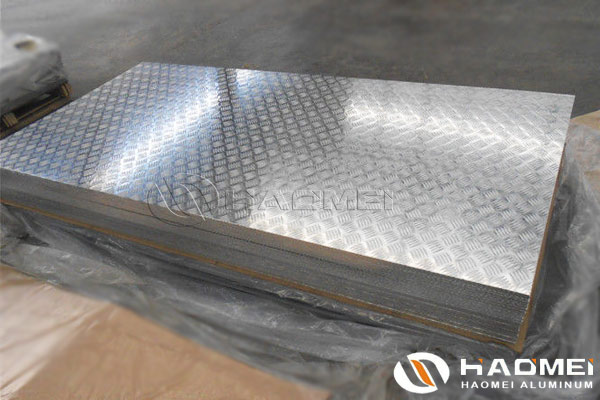

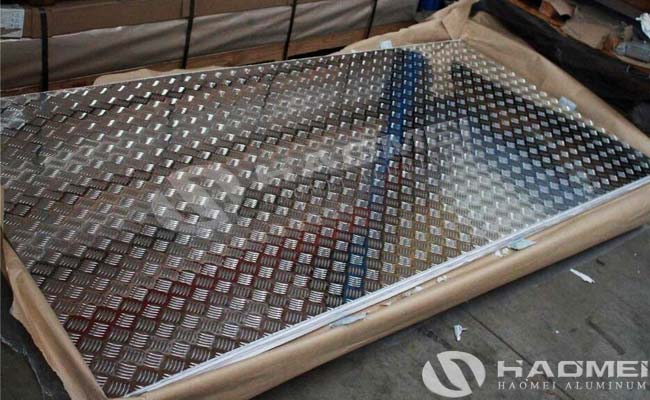

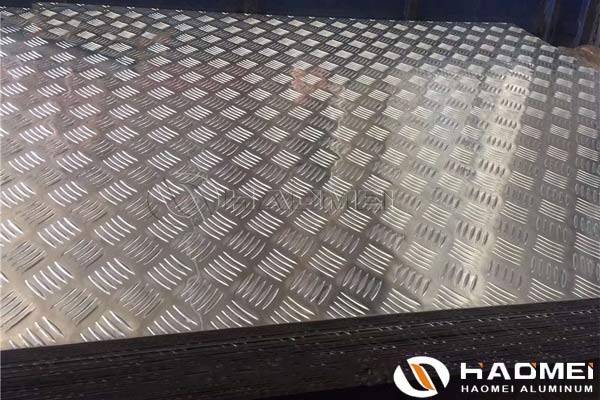

Commonly available aluminium alloy tread plates on the market are 1 - 5 bars(lenticular) tread plates. The alloy range mainly includes 1xxx, 3xxx and 5xxx series boards. Due to their easy cleaning and high brightness, they have been widely used in construction, especially in the decoration field. Among them, 3003 and 6061 alloys are the more common used aluminium alloy tread plate grades.
Alloy | 1050, 1060, 1100, 3003, 3004, 3105, 5052,5083, 5086, 5754, 6061 |
Temper | O, H12, H14, H16, H18, H22, H24, H111, H114, T6 |
Thickness | 0.8-10.0 mm |
Width | 20-1950 mm |
Length | 500-6000 mm or in Coil |
Surface | Bright finish, Mill finish, Mirror Finish, high polished |
Pattern | 5 Bars, 3 Bars, 2 Bars, 1 Bar, Diamond pattern |
Pattern height | 0.7-2.5mm |
Pattern Length | 35mm-50mm |
MOQ | 3 MT, or depend on the specification |
Production Line | DC and CC |
Application | Tool box, Floor, Anti slip usage, Truck body, Stair treads, Vehicle steps, Building, Construction, Decoration, Mechanical etc. |
Packaging | Packed and labeled according to customer’s requests. Avoid damage during storage or transportation. Clear labels are tagged on the outside of the packages for identify product ID and quality information. |
1. Accurate size, good anti-slip effect,wide range of applications
2. Strong plasticity, easy forming and excellent processing performance.
3. Aluminium alloy tread plat can form a dense and strong oxide film on aluminum surface to prevent the intrusion of oxygen, so it has good corrosion resistance.
4. Good elongation and tensile strength, fully able to meet the normal processing requirements (stamping, stretching), high formability.
5. The surface quality of aluminum alloy tread plate is good, no oil spots, waves, scratches, roller marks, neat trimming, no burrs.
1. Floor Covering for hygiene and slip resistance
2. Door Protection as kick plates or as a full door cladding
3. Wall and Column Protection to prevent impact damage where hand trucks, trolleys, sack carts etc are operated.
4. Vehicle body, Vans, Trailer tailgate ramps and flooring.
5. Access Ramp covering for wheelchairs
6. Truck Bed, Tool Boxes
7. Stair Treads, Step Ladders, Walkways
