5mm Aluminium Chequer Plate

5mm Aluminium Chequer Plate: Series1050,1060,1070, 1100,3003, 5052; TemperH12, H14, H16, H18, H22, H24, H111, H114, T6; Thickness0.8-10.0 mm; Width20-1950 mm; ApplicationTool box, Floor, Anti slip, Truck body, Stair treads; send email Inquiry

DESCRIPTION

5mm Aluminium Chequer Plate

5mm aluminium chequer plate is better for anti-rust and lighter than other materials, it can be used for many years and can retain high value after being replaced. This type of checkered plate is widely used as anti-skid plate in both commercial and industrial flooring needs and also used in the vehicles, such as the ambulance and the firework truck.

Specification of 5mm Aluminium Chequer Plate:

Alloy	1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082
Temper	H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F
Surface	Bright Finish, Mill Finish
Bar Difference	Five Bar, Stucco, Compass, Diamond.
Available Dimension
	Mill Finish Surface	Bright Finish Surface
Thickness	1.0---6.5mm	1.2---6.5mm
Pattern Height	Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm
	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm
	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm
Width	Maximum 1500mm	Maximum 1650mm
Length	Maximum 6000mm	Maximum 6000mm
Paper Interleaves	On Request For Selected	On Request For Selected
Normal Size	1200x2400mm, 1219x2438mm, 1219x3048mm	1200x2400mm, 1219x2438mm, 1219x3048mm

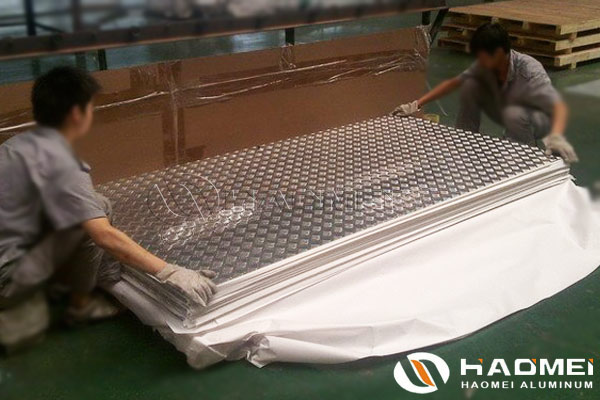

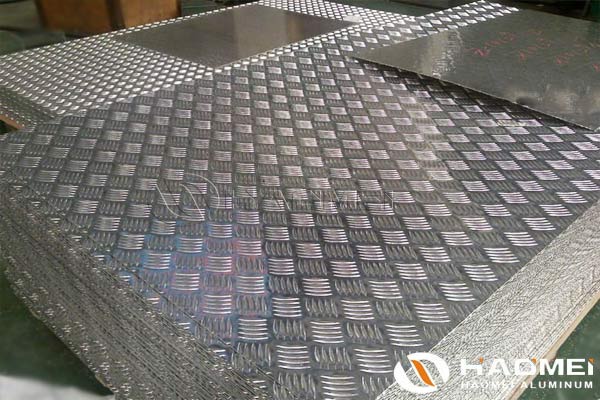

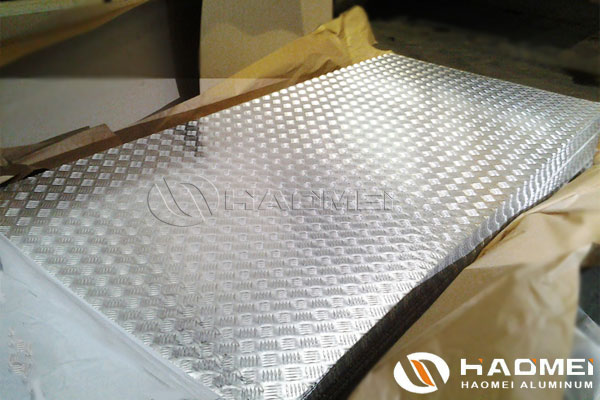

Pattern of Aluminium Chequer Plate 5mm:

Features of 5mm Chequer Plate:

Easily installed on project sites

Solid surface provides maximum traction area

Can retrofit over existing structures

Flexibility of design and many fabrication options

Continually meets coefficient of friction (COF) minimum requirements throughout life of product

Low maintenance and easy to clean

Naturally aesthetically pleasing

Does not absorb bacteria sustaining particles

Can be recycled, making it an environmentally friendly material

Application of 5mm Chequered Plate:

Ramps, Toolboxes, Decorative flooring and walls, vehicle running bars and kick plates, Trailers, Dock surfaces, Stairways.

For vehicle applications like steps and risers, battery and fuel tank covers, bumpers and kick plates.

For building applications like door kick plates, hatch covers, working platforms, steps and ramps.
