5 Bar Aluminum Tread Plate

5 Bar Aluminum Tread Plate: Series1050, 1060, 1100, 3003, 5052, 5083, 5086, 6061; TemperH12, H14, H16, H18, H22, H24, H111, H114, T6; Thickness0.8-10.0 mm; Width20-1950 mm; ApplicationTool box, Floor, Anti slip, Truck body, Stair treads; send email Inquiry

DESCRIPTION

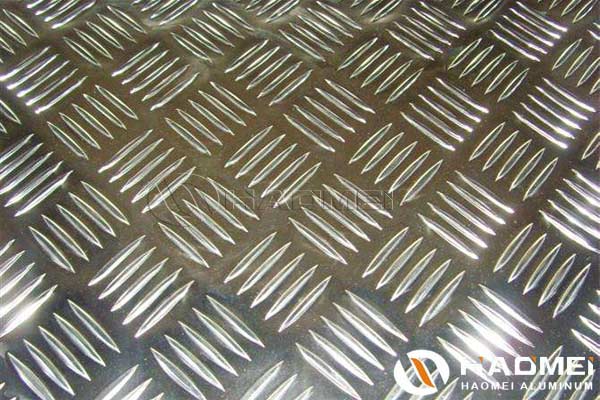

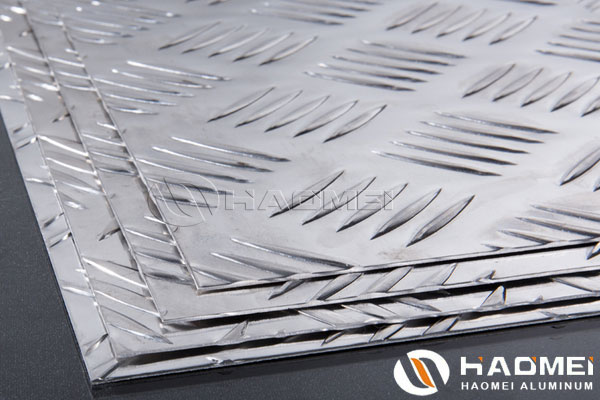

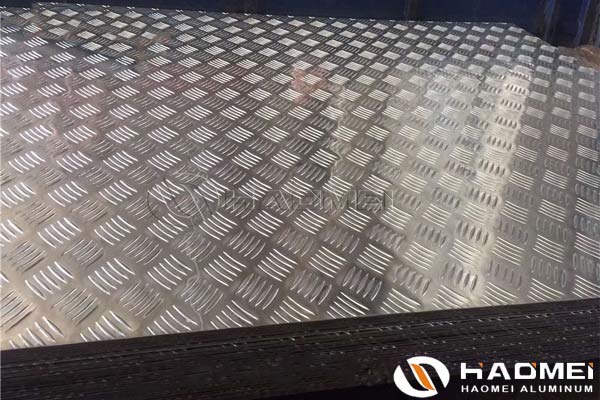

5 bar aluminum tread plate is also known as five bar aluminum tread plate, which have small 5 bars and large 5 bars pattern. 5 bar tread plate has good anti-slip ability, and is widely used in building (floor) platform design and other aspects. Because the pattern on the surface of the 5 bar aluminium tread plate is arranged in parallel with five uneven patterns, and each pattern has an angle of 60-80 degrees with other patterns, this pattern has excellent anti-slip performance. This kind of aluminum tread plate is usually used in China as a kind of non-slip material, which has a good anti-slip effect and is cheap.

Specification of 5 Bar Tread Plate:

Alloy	1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082
Temper	H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F
Surface	Bright Finish, Mill Finish
Bar Difference	Five Bars.
Available Dimension
	Mill Finish Surface	Bright Finish Surface
Thickness	1.0---6.5mm	1.2---6.5mm
Pattern Height	Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm
	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm
	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm
Width	Maximum 1500mm	Maximum 1650mm
Length	Maximum 6000mm	Maximum 6000mm
Paper Interleaves	On Request For Selected	On Request For Selected
Normal Size	1200x2400mm, 1219x2438mm, 1219x3048mm	1200x2400mm, 1219x2438mm, 1219x3048mm

Features of 5 Bar Aluminum Tread Plate:

· Slip resistant surface

· Extremely durable—requires no maintenance

· Weather & corrosion resistant

· Bright reflective surface

· Unique decorative appearance

Application of 5 Bar Aluminium Tread Plate:

1. Floor Covering for hygiene and slip resistance

2. Door Protection as kick plates or as a full door cladding

3. Commercial Vehicle and Vans

4. Wall and Column Protection to prevent impact damage where hand trucks, trolleys, sack carts etc are operated.

5. Vehicle body protection, bonnets, wings, sills, corners, floors, bumpers, mud flaps, door plates, side plates, load area plates

6. Door Protection as kick plates or as a full door cladding

7. Access Ramp covering for wheelchairs

8. Truck Bed Tool Boxes

9. Livestock Trailer tailgate ramps and flooring.

10. Shop Front fascias for vandal protection

11. Commercial Vehicle and Vans

12. Stair Treads, Step Ladders, Walkways
