1060 aluminum checker plate has aluminum content of 99.6%. Because of its excellent performance, it is used in non-slip floors, tool boxes, decorative wall surfaces, etc. 1060 aluminium checker plate has a great advantage in price, is one of the most commonly used aluminium checker plate in the market.
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Each | Total | Alu |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | – | – | 0.05 | 0.03 | – | 0.05 | 0.03 | – | 99.60 |
Item | aluminium checker plate |
Grade | 1050, 1060, 1100, 3003,5052, 5083, 5086, 6061 etc. |
Temper | O, H12, H14, H16, H18, H24, H24, H26, H32, H34 |
Standard | ASTM-B209. EN573-1, GB/T3880.1-2006 |
Thickness | 0.8 - 12mm |
Width | 400-1220mm |
Length | max 6000mm for sheet or as required for coil |

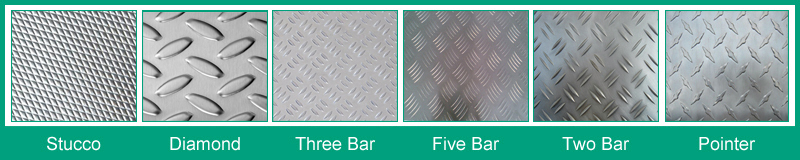

Pattern | big 5 bar / small 5 bar / 3 bar / diamond / pointer |
Surface treatment | polished, mill finished, power coated, sand blast, anodized, brushed. |
Surface Protection | Oleo phobic coating, protective film, paint coating. |
Packing | Export wooden pallets. The bundle weight not exceed 2MT. Loading:by 1x20GP. |
Quality | Totally free from defects like white rust, oil patches, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
MOQ | 1-2 Metric ton |
Free sample | Available |
Delivery time | 20-30 days after deposit |

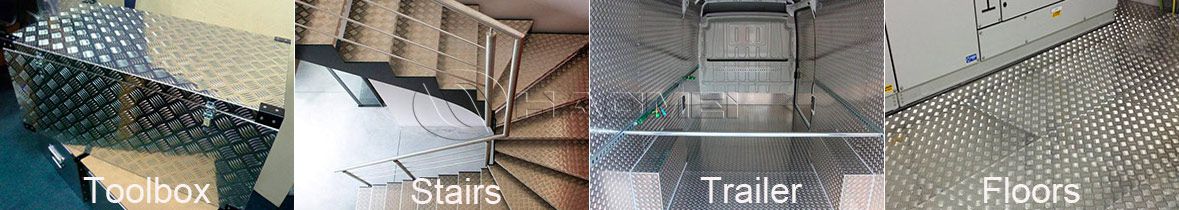

Ramps, Toolboxes, Decorative flooring and walls, vehicle running bars and kick plates, Trailers, Dock surfaces, Stairways.
For vehicle applications like steps and risers, battery and fuel tank covers, bumpers and kick plates.
For building applications like door kick plates, hatch covers, working platforms, steps and ramps.
1. High elongation, good tensile strength, can fully meet the requirements of conventional processing, high molding.
2. Good anti-slip effect. Compared with the ordinary flat plate, the surface of the aluminum checker plate has a small bump, which can increase friction.
3. Can be made into a bright surface, which has a decorative and beautiful effect.
4. Low density and light weight, 1060 aluminium checker plate can reduce its own weight when used in refrigerated vehicles and other mobile devices.
