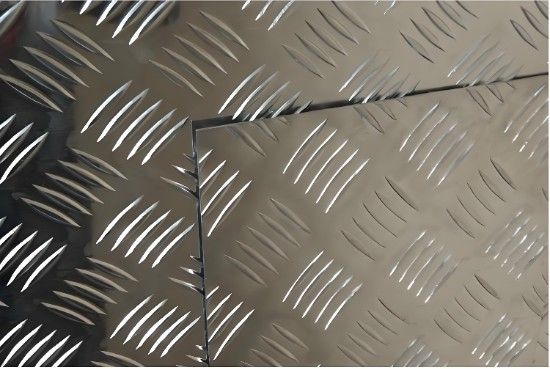

Big 5 bar aluminium checker plate and small 5 bar aluminium checker plate are two common anti-slip aluminum checkered plates. Their main difference lies in the size of the pattern and the specific application scenarios, but they also have many similarities.

Difference between big 5 bar aluminium checker plate and small 5 bar aluminium checker plate:

1. Pattern size

- Rib length and height: The rib length of the big 5 bar is usually around 40 mm, while the rib length of the small 5 bar is about 30 mm, with a difference of about 10 mm. Some information mentions that the pattern of the small 5bar is 1-2 cm smaller than that of the big 5 bar (i.e. 10-20 mm), which may be related to the standards of different manufacturers.

- Rib height difference: The rib height difference of the small 5 bar is smaller, and the pattern is more compact, while the rib height difference of the big 5 bar is larger, and the anti-slip performance is stronger.

2. Application scenario

- Big 5 bar aluminium checker plate: Suitable for occasions that require higher anti-slip performance, such as ship decks, cold storage floors, industrial platforms, etc.

- Small 5 bar aluminium checker plate: Mostly used in more decorative scenes, such as building decoration, equipment base plates, etc., with lower requirements for mechanical properties.

Similarities of big 5 bar aluminium checker plate and small 5 bar aluminium checker plate:

1. Material and production process

- Both are made of aluminum alloy (such as 1060, 3003, 5052, 6061, etc.), which are pressed and annealed by embossing equipment, and the production process is consistent.

- Both belong to the 5 bar aluminium checker plate series, with parallel patterns and similar anti-slip principles.

2. Performance characteristics

- Anti-slip: Both achieve anti-slip function through the arrangement of concave and convex patterns, suitable for anti-slip demand scenes such as vehicle floors, elevator steps, stairs, etc.

- Corrosion resistance and processability: It has the advantages of corrosion resistance, easy processing, and recyclability, suitable for a variety of industrial uses.

3. Application field

Both are widely used in transportation (automobiles, ships), construction (floors, decorations), machinery manufacturing and other fields.

The two kinds of 5 bar aluminium checker plates are highly consistent in material selection, production process, and basic functions, and belong to different specifications of the same product series. The big 5 bar aluminium checker plate is suitable for high-strength anti-slip needs with a larger rib length and higher anti-slip performance, while the small 5 bar aluminium checker plate pays more attention to beauty and lightweight anti-slip.
